Overview​

NBomber Studio - is a powerful management tool designed by NBomber for managing and interacting with NBomber load tests. The tool provides the following capabilities:

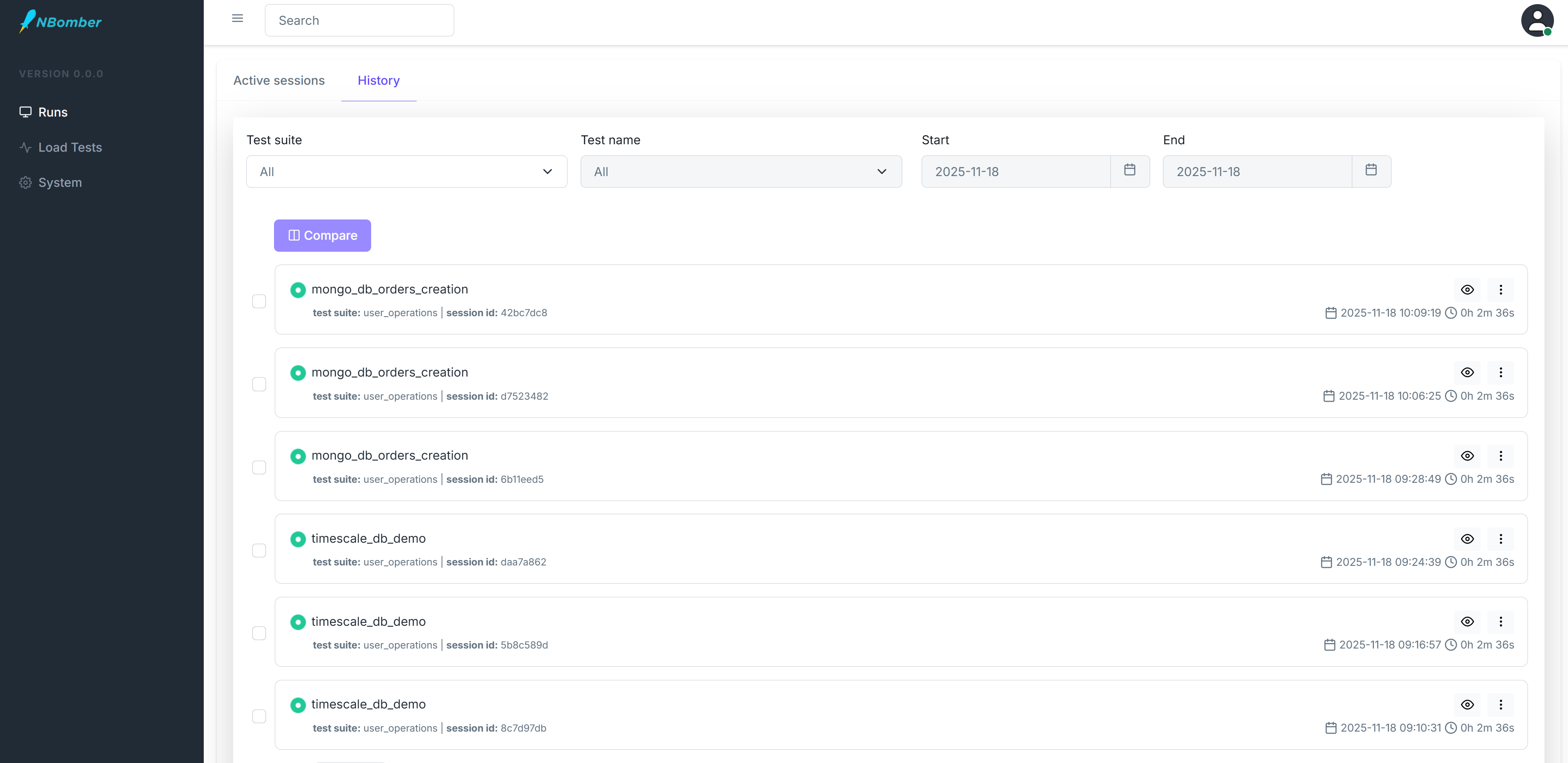

  • Real-time data visibility - allows to monitor ongoing load tests while also analyzing historical test runs. Think of it as a native alternative to Grafana, specifically designed for NBomber load tests.

  • Running load tests in the cloud - enables to schedule and execute load tests in popular cloud environments (AWS, Azure, Google Cloud, Digital Ocean). This functionality is currently in development.

License​

info

NBomber Studio is FREE only for personal use. You can't use FREE version for an organization.

For organization usage, a minimum NBomber Business license is required.

Installation​

NBomber Studio is provided as a Docker image and requires a PostgreSQL database with the TimescaleDB extension. Below is an example of a Docker compose file that sets up both NBomber Studio and TimescaleDB.

docker-compose.yaml
services:

    timescaledb:
        image: timescale/timescaledb:2.14.2-pg16
        command: postgres -c 'max_connections=500'
        restart: always
        ports:
            - "5432:5432"
        volumes:
            - nb_studio_data:/var/lib/postgresql/data
        environment:
            POSTGRES_DB: nb_studio_db
            POSTGRES_USER: timescaledb
            POSTGRES_PASSWORD: timescaledb
        healthcheck:
            test: [ "CMD-SHELL", "pg_isready -d 'user=timescaledb dbname=nb_studio_db'" ]
            interval: 5s
            timeout: 10s
            retries: 5
            start_period: 5s

    nbomber-studio:
        image: nbomberdocker/nbomber-studio:latest
        ports:
            - "5333:8080"
        depends_on:
            timescaledb:
                condition: service_healthy
        environment:
            DBSETTINGS:CONNECTIONSTRING: "Host=timescaledb;Port=5432;Username=timescaledb;Password=timescaledb;Database=nb_studio_db;Pooling=true;"

volumes:
    nb_studio_data:
        driver: local

You can find the complete example by this link.

info

For production use, it’s important to specify the exact version of the NBomber Studio image rather than using latest.

image: nbomberdocker/nbomber-studio:0.1.0

Spin up NBomber Studio​

To proceed with the installation, we need to start NBomber Studio and its dependencies by running the following command inside the folder with docker-compose.yaml file:

docker compose up -d

After that, the dependencies should be up and running. Now, let's open web browser and navigate to NBomber Studio, which is hosted locally (in Docker) and accessible at the following address:

http://localhost:5333

You will see a dashboard displaying active sessions, which will initially be empty.

Run load test​

The next step is to run an NBomber load test, which will send metrics to TimescaleDB, allowing us to monitor them in NBomber Studio. To do this, let’s set up a basic test that writes data into TimescaleDB.

info

To write metrics into TimescaleDB, we’ll use the NBomber Sink for Timescale.

The following is an example of a load test that writes data into TimescaleDB.

var config = new TimescaleDbSinkConfig(connectionString: "YOUR CONNECTION STRING");
var timescaleDb = new TimescaleDbSink(config);

var scenario = Scenario.Create("user_flow_scenario", async context =>
{
    ...
})
.WithLoadSimulations(
    Simulation.Inject(rate: 200, interval: TimeSpan.FromSeconds(1), during: TimeSpan.FromSeconds(30))
);

NBomberRunner
    .RegisterScenarios(scenario)
    .WithReportingSinks(timescaleDb)
    .Run();

You can find the complete example by this link.

After starting the scenario, you should see one active session appear. NBomber Studio automatically detects real-time data updates and refreshes the screen accordingly.

Now, we can navigate to this session and analyze our real-time metrics. The dashboard will refresh according to the reporting interval specified in the load test.
